How an Air Cooled Chiller Works in Industrial Applications
Some jobs run hot. Standard HVAC systems can’t keep up with heavy manufacturing, large construction sites, or high-capacity industrial processes. You need a bigger solution.
Air-cooled chillers handle cooling loads that regular systems can’t. Industrial facilities, data centers, and large-scale outdoor events all rely on them. They deliver precise, reliable cooling where HVAC falls short.
In this guide, you’ll learn how air-cooled chillers work and what their core components do. Explore which type fits your application, and how HOLT Industrial Rentals can get one on-site fast.
How Does an Air Cooled Chiller Work?
An air-cooled chiller is a refrigeration system that removes heat from a process or space and rejects it into the surrounding air. No cooling water or external water supply is required.
Understanding how air-cooled chillers work starts with the refrigeration cycle. It runs in four stages, each one hands off to the next.
Stage 1: Evaporation
The refrigeration cycle begins at the evaporator. Here, the liquid refrigerant absorbs heat from the chilled water or process fluid as it passes through the heat exchanger. As it absorbs that heat, the refrigerant changes from liquid to gas. The cooled water then flows out to handle your cooling loads.
Step 2: Compression
The low-pressure refrigerant gas moves into the compressor. Pressure builds, and the refrigerant’s temperature rises sharply. This high-pressure, high-temperature gas is now ready to release the heat it’s been carrying.
Step 3: Condensation
The hot refrigerant flows into the chiller condenser. Fans push ambient air across the condenser coils, pulling heat away from the refrigerant gas. That excess heat gets rejected directly into the surrounding air. This is the key difference from water-cooled systems. There’s no condenser water loop, no cooling tower, no extra infrastructure.
Stage 4: Expansion
The refrigerant, now cooled back to liquid, passes through the expansion valve. Pressure drops. Temperature drops. The liquid refrigerant returns to low pressure and flows back to the evaporator to restart the cycle.
This is the working principle behind every air-cooled chiller system. The refrigerant flows in a continuous loop, moving heat from where you don’t want it to the outside air. It’s how this chiller air conditioning system delivers consistent, efficient cooling without drawing on local water resources.
Core Air Cooled Chiller Components and Their Functions
Every air-cooled chiller system consists of several key components that work together to remove heat from your facility or process. Knowing what each part does and what to watch for when something goes wrong helps you stay ahead of downtime.
Compressor
The compressor is the engine of the refrigeration system. It takes low-pressure refrigerant gas from the evaporator and compresses it into a high-pressure, high-temperature gas. This pressurized refrigerant drives heat transfer throughout the rest of the system. Many industrial chillers use reciprocating or scroll compressors, depending on the required cooling capacity.
Watch for: Unusual noise, vibration, or a drop in cooling performance. These are early signs that the compressor is under stress or losing efficiency.
Condenser Coils
The condenser coils are where heat rejection happens. Hot refrigerant gas flows through the coils, and fans push ambient air across them to remove excess heat. This is the defining feature of air-cooled chiller systems. Heat leaves through the air, not through a cooling tower or condenser water loop.
Watch for: Bent fins, debris buildup, or restricted airflow around the coils. Any of these reduces chiller efficiency and drives up energy costs.
Evaporator
The evaporator is the heat exchanger where cooling actually occurs. Warm process water or chilled water passes through, and liquid refrigerant on the other side absorbs that heat. The refrigerant evaporates, the water cools, and that cooled water heads out to handle your cooling loads.
Watch for: Frost buildup on the evaporator surface or a rise in chilled water temperature. Both point to a heat transfer problem that will hurt cooling performance if left unchecked.
Expansion Valve
The expansion valve controls how much liquid refrigerant enters the evaporator. It reduces the refrigerant’s pressure and temperature before it reaches the heat exchanger, setting up the next stage of the refrigeration cycle.
Watch for: Inconsistent chilled water temperatures or short-cycling of the compressor. These can indicate the valve is stuck open, stuck closed, or losing its ability to regulate refrigerant flow accurately.
Refrigerant
Refrigerant is the coolant that carries heat through the entire system. It shifts between liquid and gas states as it moves through the cooling process, absorbing heat at the evaporator and releasing it at the chiller condenser. The type of chiller used affects both energy efficiency and the system’s long-term lifespan.
Watch for: A gradual loss of cooling capacity without another obvious cause. Refrigerant charge loss is a common culprit and one of the more overlooked air-cooled chiller component issues in industrial settings.
Fans and Blowers
Fans and blowers push air from the surrounding area across the condenser coils to carry heat away from the refrigerant gas. Without strong, consistent airflow, the heat rejection process slows down, and the entire cooling system works harder to compensate.
Watch for: Reduced airflow, loud bearing noise, or fan blades with visible damage. Poor airflow raises operating temperatures across the system, increases energy costs, and shortens the lifespan of other components.
Types of Air Cooled Chillers Used in Industry
Not every air-cooled chiller system is built the same way. The type you choose depends on your cooling loads, your site, and how fast you need cooling up and running.
Here are the three main configurations used across industrial processes, commercial buildings, and large-scale temporary applications.
Packaged Chillers
A packaged chiller combines everything into a single unit. The compressor, condenser coils, evaporator, and controls are all housed together. You set it up, connect it to your system, and it runs.
These units suit facilities with steady, high cooling capacity demands. Manufacturing plants, data centers, and large commercial buildings use them for long-term, reliable cooling. They deliver strong chiller efficiency and low maintenance costs over time when properly maintained.
Modular Chillers
Modular chillers give you flexibility. Each module carries a set cooling capacity, and you stack them to match your load. Add a module when demand grows. Remove one when it drops.
This makes them a strong fit for industrial processes with variable cooling needs. They also reduce downtime risk. If one module needs service, the others keep running. Your cooling performance stays intact.
Portable and Rental Chillers
Portable chillers are trailer- or skid-mounted and designed for fast deployment. They deliver industrial chiller capacity without the lead time or capital cost of a permanent installation.
These units cover a lot of ground. They handle emergency cooling when the primary system fails. They fill in during planned maintenance windows. They support temporary industrial processes, construction sites, and outdoor events where no fixed cooling infrastructure exists.
For operations that face seasonal spikes in cooling loads or unexpected downtime, portable chillers keep things moving. Deployment is fast, and setup is straightforward.
Common Applications for Air Cooled Chillers in Industry
Air-cooled chillers show up across a wide range of industries because heat is a universal problem. If a process, facility, or event generates more heat than standard HVAC systems can handle, a chiller is usually the answer.
Manufacturing and Process Cooling
Manufacturing lines generate heat continuously. Machinery, hydraulics, and industrial processes all raise temperatures. Air-cooled chillers keep equipment running at safe operating temperatures. In facilities that also use compressed air systems, an air compressor chiller removes the heat generated by compressor operations. Visit HOLT’s compressed air page if your site has both cooling and compressed air needs.
Construction Sites and Temporary Facilities
Construction sites rarely have permanent cooling infrastructure. Portable air-cooled chillers fill that gap. They cool temporary offices, protect sensitive equipment, and support large-scale concrete curing processes where temperature control directly affects structural outcomes.
Data Centers and Server Room Cooling
Data centers run hot around the clock. Servers generate constant heat loads, and even short spikes in temperature cause damage or downtime. Air-cooled chiller systems provide the precise, reliable liquid cooling that data centers depend on to protect equipment and maintain uptime.
Outdoor Events and Large Venue Cooling
Large outdoor events and temporary venues need cooling solutions that set up fast and perform under pressure. Air-cooled chillers connect to air handling units and air handlers to cool tents, pavilions, and large event spaces without relying on fixed building infrastructure.
Emergency Cooling and Planned Maintenance
When an HVAC system fails or goes offline for maintenance, operations can’t just stop. A rental air-cooled chiller from HOLT steps in immediately. It bridges the gap between failure and repair, or covers the full window of a planned shutdown, without disrupting industrial processes or compromising facility conditions.
For any of these applications, HOLT’s temperature control page is the right starting point.
Keep your Space Cool with HOLT Industrial Rentals
When your cooling loads exceed your current system’s capacity, an air-cooled chiller rental closes that gap fast.
HOLT Industrial Rentals delivers, installs, and supports every unit on-site. You don’t coordinate logistics or figure out setup on your own. HOLT’s team handles it.
If you’re managing a planned maintenance window, an emergency shutdown, or a temporary industrial process, the right chiller is available when you need it.
Visit the temperature control page to explore available units. Or skip straight to scheduling a site assessment.
If you’re not sure which chiller size fits your load, call 844-660-RENT (7368). We’ll help you size it right before the unit ever leaves the yard.
How an Air Cooled Chiller Works in Industrial Applications
Some jobs run hot. Standard HVAC systems can’t keep up with heavy manufacturing, large construction sites, or high-capacity industrial processes. You need a bigger solution.
Air-cooled chillers handle cooling loads that regular systems can’t. Industrial facilities, data centers, and large-scale outdoor events all rely on them. They deliver precise, reliable cooling where HVAC falls short.
In this guide, you’ll learn how air-cooled chillers work and what their core components do. Explore which type fits your application, and how HOLT Industrial Rentals can get one on-site fast.
How Does an Air Cooled Chiller Work?
An air-cooled chiller is a refrigeration system that removes heat from a process or space and rejects it into the surrounding air. No cooling water or external water supply is required.
Understanding how air-cooled chillers work starts with the refrigeration cycle. It runs in four stages, each one hands off to the next.
Stage 1: Evaporation
The refrigeration cycle begins at the evaporator. Here, the liquid refrigerant absorbs heat from the chilled water or process fluid as it passes through the heat exchanger. As it absorbs that heat, the refrigerant changes from liquid to gas. The cooled water then flows out to handle your cooling loads.
Step 2: Compression
The low-pressure refrigerant gas moves into the compressor. Pressure builds, and the refrigerant’s temperature rises sharply. This high-pressure, high-temperature gas is now ready to release the heat it’s been carrying.
Step 3: Condensation
The hot refrigerant flows into the chiller condenser. Fans push ambient air across the condenser coils, pulling heat away from the refrigerant gas. That excess heat gets rejected directly into the surrounding air. This is the key difference from water-cooled systems. There’s no condenser water loop, no cooling tower, no extra infrastructure.
Stage 4: Expansion
The refrigerant, now cooled back to liquid, passes through the expansion valve. Pressure drops. Temperature drops. The liquid refrigerant returns to low pressure and flows back to the evaporator to restart the cycle.
This is the working principle behind every air-cooled chiller system. The refrigerant flows in a continuous loop, moving heat from where you don’t want it to the outside air. It’s how this chiller air conditioning system delivers consistent, efficient cooling without drawing on local water resources.
Core Air Cooled Chiller Components and Their Functions
Every air-cooled chiller system consists of several key components that work together to remove heat from your facility or process. Knowing what each part does and what to watch for when something goes wrong helps you stay ahead of downtime.
Compressor
The compressor is the engine of the refrigeration system. It takes low-pressure refrigerant gas from the evaporator and compresses it into a high-pressure, high-temperature gas. This pressurized refrigerant drives heat transfer throughout the rest of the system. Many industrial chillers use reciprocating or scroll compressors, depending on the required cooling capacity.
Watch for: Unusual noise, vibration, or a drop in cooling performance. These are early signs that the compressor is under stress or losing efficiency.
Condenser Coils
The condenser coils are where heat rejection happens. Hot refrigerant gas flows through the coils, and fans push ambient air across them to remove excess heat. This is the defining feature of air-cooled chiller systems. Heat leaves through the air, not through a cooling tower or condenser water loop.
Watch for: Bent fins, debris buildup, or restricted airflow around the coils. Any of these reduces chiller efficiency and drives up energy costs.
Evaporator
The evaporator is the heat exchanger where cooling actually occurs. Warm process water or chilled water passes through, and liquid refrigerant on the other side absorbs that heat. The refrigerant evaporates, the water cools, and that cooled water heads out to handle your cooling loads.
Watch for: Frost buildup on the evaporator surface or a rise in chilled water temperature. Both point to a heat transfer problem that will hurt cooling performance if left unchecked.
Expansion Valve
The expansion valve controls how much liquid refrigerant enters the evaporator. It reduces the refrigerant’s pressure and temperature before it reaches the heat exchanger, setting up the next stage of the refrigeration cycle.
Watch for: Inconsistent chilled water temperatures or short-cycling of the compressor. These can indicate the valve is stuck open, stuck closed, or losing its ability to regulate refrigerant flow accurately.
Refrigerant
Refrigerant is the coolant that carries heat through the entire system. It shifts between liquid and gas states as it moves through the cooling process, absorbing heat at the evaporator and releasing it at the chiller condenser. The type of chiller used affects both energy efficiency and the system’s long-term lifespan.
Watch for: A gradual loss of cooling capacity without another obvious cause. Refrigerant charge loss is a common culprit and one of the more overlooked air-cooled chiller component issues in industrial settings.
Fans and Blowers
Fans and blowers push air from the surrounding area across the condenser coils to carry heat away from the refrigerant gas. Without strong, consistent airflow, the heat rejection process slows down, and the entire cooling system works harder to compensate.
Watch for: Reduced airflow, loud bearing noise, or fan blades with visible damage. Poor airflow raises operating temperatures across the system, increases energy costs, and shortens the lifespan of other components.
Types of Air Cooled Chillers Used in Industry
Not every air-cooled chiller system is built the same way. The type you choose depends on your cooling loads, your site, and how fast you need cooling up and running.
Here are the three main configurations used across industrial processes, commercial buildings, and large-scale temporary applications.
Packaged Chillers
A packaged chiller combines everything into a single unit. The compressor, condenser coils, evaporator, and controls are all housed together. You set it up, connect it to your system, and it runs.
These units suit facilities with steady, high cooling capacity demands. Manufacturing plants, data centers, and large commercial buildings use them for long-term, reliable cooling. They deliver strong chiller efficiency and low maintenance costs over time when properly maintained.
Modular Chillers
Modular chillers give you flexibility. Each module carries a set cooling capacity, and you stack them to match your load. Add a module when demand grows. Remove one when it drops.
This makes them a strong fit for industrial processes with variable cooling needs. They also reduce downtime risk. If one module needs service, the others keep running. Your cooling performance stays intact.
Portable and Rental Chillers
Portable chillers are trailer- or skid-mounted and designed for fast deployment. They deliver industrial chiller capacity without the lead time or capital cost of a permanent installation.
These units cover a lot of ground. They handle emergency cooling when the primary system fails. They fill in during planned maintenance windows. They support temporary industrial processes, construction sites, and outdoor events where no fixed cooling infrastructure exists.
For operations that face seasonal spikes in cooling loads or unexpected downtime, portable chillers keep things moving. Deployment is fast, and setup is straightforward.
Common Applications for Air Cooled Chillers in Industry
Air-cooled chillers show up across a wide range of industries because heat is a universal problem. If a process, facility, or event generates more heat than standard HVAC systems can handle, a chiller is usually the answer.
Manufacturing and Process Cooling
Manufacturing lines generate heat continuously. Machinery, hydraulics, and industrial processes all raise temperatures. Air-cooled chillers keep equipment running at safe operating temperatures. In facilities that also use compressed air systems, an air compressor chiller removes the heat generated by compressor operations. Visit HOLT’s compressed air page if your site has both cooling and compressed air needs.
Construction Sites and Temporary Facilities
Construction sites rarely have permanent cooling infrastructure. Portable air-cooled chillers fill that gap. They cool temporary offices, protect sensitive equipment, and support large-scale concrete curing processes where temperature control directly affects structural outcomes.
Data Centers and Server Room Cooling
Data centers run hot around the clock. Servers generate constant heat loads, and even short spikes in temperature cause damage or downtime. Air-cooled chiller systems provide the precise, reliable liquid cooling that data centers depend on to protect equipment and maintain uptime.
Outdoor Events and Large Venue Cooling
Large outdoor events and temporary venues need cooling solutions that set up fast and perform under pressure. Air-cooled chillers connect to air handling units and air handlers to cool tents, pavilions, and large event spaces without relying on fixed building infrastructure.
Emergency Cooling and Planned Maintenance
When an HVAC system fails or goes offline for maintenance, operations can’t just stop. A rental air-cooled chiller from HOLT steps in immediately. It bridges the gap between failure and repair, or covers the full window of a planned shutdown, without disrupting industrial processes or compromising facility conditions.
For any of these applications, HOLT’s temperature control page is the right starting point.
Keep your Space Cool with HOLT Industrial Rentals
When your cooling loads exceed your current system’s capacity, an air-cooled chiller rental closes that gap fast.
HOLT Industrial Rentals delivers, installs, and supports every unit on-site. You don’t coordinate logistics or figure out setup on your own. HOLT’s team handles it.
If you’re managing a planned maintenance window, an emergency shutdown, or a temporary industrial process, the right chiller is available when you need it.
Visit the temperature control page to explore available units. Or skip straight to scheduling a site assessment.
If you’re not sure which chiller size fits your load, call 844-660-RENT (7368). We’ll help you size it right before the unit ever leaves the yard.
Warehouse Cooling Systems That Improve Productivity and Safety
Your warehouse temperature affects everything. Worker performance drops, equipment overheats, and inventory damage climbs. Heat stress sends employees home or worse, to the hospital.
You manage a large space with high ceilings, and loading dock traffic runs constantly. Heat-generating equipment operates all day. Traditional air conditioning costs too much. It still leaves hot spots throughout your facility.
The right cooling approach balances worker safety, equipment protection, and operational costs.
In this guide, you’ll learn why warehouse cooling directly impacts your bottom line and see common obstacles facing large facilities. You’ll explore the most effective cooling systems for different scenarios.
Why Warehouse Cooling Is Critical for Safety and Productivity
Heat exhaustion becomes a real risk when temperatures inside your facility climb above 80-85°F. Your workers slow down. They face serious health hazards during the summer months or in facilities with poor ventilation.
OSHA guidelines recognize heat stress as a preventable workplace hazard.
Workers in hot environments experience decreased cognitive function. They have reduced physical stamina, and injury rates go up. Turnover spikes when employees consistently work in uncomfortable conditions. Replacing trained warehouse staff costs thousands per position.
The Hidden Costs of Excessive Heat
Your productivity takes an immediate hit when temperatures rise. Workers need more frequent breaks, and tasks take longer. Accuracy suffers during picking, packing, and inventory management.
Equipment suffers too. Forklifts and conveyor systems generate their own heat. Then they operate in already-hot conditions.
Electronics and machinery malfunction more frequently, requiring more frequent maintenance. Heat-sensitive inventory can become damaged or unsellable. This includes pharmaceuticals, food products, and certain building materials.
Poor air quality compounds these problems. Stagnant hot air traps dust, exhaust fumes, and other airborne particles. Workers breathe harder in the heat, inhaling more contaminants.
The financial impact extends beyond obvious productivity losses. Equipment downtime means delayed shipments. Product damage means waste and customer complaints. Employee turnover means constant recruiting and training costs. Energy bills climb as you run inefficient cooling systems harder and longer.
Common Challenges When Cooling Large Warehouses
Most warehouses prioritize storage capacity and operational flow over climate control, creating significant cooling obstacles.
Structural Barriers Work Against You
High ceilings create natural heat stratification. Hot air rises and stays trapped near the roof while your workers suffer in the heat below. A 30-foot ceiling means you’re cooling a massive volume of air, most of it well above where anyone works.
Large square footage compounds the problem. A 50,000-square-foot facility requires industrial-scale cooling capacity. Traditional air conditioning systems designed for office buildings can’t efficiently handle the load. You’ll face enormous energy costs trying to cool that much warehouse space with undersized equipment.
Older buildings often have minimal or no insulation. Metal roofs absorb heat all day and radiate it into your warehouse. Concrete walls transfer outdoor temperatures inside.
Operational Factors Complicate Temperature Control
Loading docks create constant air exchange with the outdoors. Every time a door opens, hot air rushes in. Truck traffic means doors stay open for extended periods during summer heat. You can’t shut down operations to maintain temperatures.
Heat-generating equipment runs throughout your facility. Forklifts produce engine heat, and conveyor motors warm up during operation. Older lighting systems add a significant thermal load. Production equipment in manufacturing warehouses generates even more heat.
Airflow becomes inconsistent across different zones. Some areas have good natural ventilation, while others become dead zones. Pallets stacked to the ceiling block air movement. Rack configurations create barriers to air circulation.
Balancing these priorities without a clear strategy leads to inadequate warehouse cooling solutions.
The Best Warehouse Cooling Systems for Large Facilities
Your cooling strategy depends on your facility size and budget. You also need to decide between permanent infrastructure or flexible temporary support. Here are the most effective warehouse cooling solutions available today.
Air Conditioning Systems for Warehousing Cooling
Air conditioning units deliver precise temperature control and humidity management. They’re the gold standard for warehouse cooling when conditions demand reliable performance.
Central HVAC Systems
Central HVAC systems provide comprehensive climate control for warehouses. They manage precise temperatures across large spaces.
These refrigerant-based air conditioning systems cool your entire facility to specific temperatures. This is essential when storing temperature-sensitive inventory or operating in extreme climates.
Modern HVAC installations offer high efficiency ratings. They reduce energy costs compared to older units. Variable-speed compressors adjust cooling output to match current demand. Zoned systems let you cool specific areas more intensively while maintaining baseline temperatures elsewhere.
The investment runs high. Installation costs for warehouse-scale HVAC systems reach into six figures. This depends on your square footage and ceiling height.
Ongoing maintenance, filter replacement, and refrigerant servicing add operational expenses. But for facilities requiring year-round climate control, central air conditioning delivers consistent results. It protects both workers and inventory.
Energy-efficient models reduce operating costs significantly. Look for systems with high SEER ratings. These high-efficiency units consume less power while delivering the same cooling capacity. The upfront cost premium typically pays back within 3-5 years through lower energy bills.
Portable Air Conditioners and Spot Coolers
Portable air conditioners and spot coolers solve your most immediate cooling challenges. These units provide concentrated cooling where your workers need it most, packing stations, quality control areas, equipment operator positions, or loading dock zones.
Spot-cooling targets problem areas without the expense of cooling your entire warehouse. Position units near heat-generating machinery to protect equipment performance. Direct cool air to worker stations during peak heat hours. Move them as your operational needs change throughout the day or season.
These refrigerant-based systems deliver cold air directly to hot spots. A 5-ton portable air conditioner can effectively cool 1,500-2,000 square feet. Multiple units strategically positioned throughout your facility provide comprehensive coverage at a lower cost than whole-building HVAC systems.
Installation takes minutes. Roll the unit into position, plug it in, and direct the airflow where you need it. When you face an unexpected heat wave or an HVAC system failure, portable cooling equipment can be deployed the same day.
Rental options deliver maximum flexibility. Scale your cooling capacity up during summer months or special projects without permanent investment. Return units when temperatures moderate. Avoid storage, maintenance, and year-round costs for equipment you only need part-time.
Modern portable air conditioners are more energy-efficient than older models. Variable-speed fans and improved refrigerants reduce power consumption. Some units include heat pump technology that can provide heating during cooler months, extending usefulness beyond summer cooling.
Supplemental Cooling Methods
Air conditioning units work best when combined with complementary cooling strategies. These methods enhance the effectiveness of your primary cooling system. They reduce overall energy costs.
Evaporative Cooling Solutions
Evaporative coolers use water evaporation to cool air. They’re also called swamp coolers. This process consumes 75% less energy than traditional air conditioning units. These systems work exceptionally well in dry climates where humidity stays low.
The science is simple. Water evaporates and absorbs heat from the surrounding air. Fans push this cooled air throughout your warehouse. You’ll see temperature drops of 15-30°F. This depends on outdoor humidity levels. Operating costs stay low because the system relies on water and fan power. It doesn’t use energy-intensive refrigerant compression.
Climate matters significantly. Evaporative coolers lose effectiveness in humid regions. The air already carries substantial moisture. Once outdoor humidity exceeds 50-60%, cooling performance drops dramatically.
In dry climates, evaporative cooling effectively handles warehouse temperature control. You can achieve substantial cooling at a fraction of the cost of air conditioning systems. Many facilities use evaporative coolers for general warehouse cooling. Then they deploy portable air conditioners in specific zones. requiring lower temperatures or humidity control.
Portable dehumidifiers address the humidity component of uncomfortable warehouse conditions. High humidity makes heat feel worse. Your workers sweat, but the moisture doesn’t evaporate efficiently. Additionally, condensation forms on equipment and inventory.
Dehumidifiers remove moisture from the air,r improving comfort even when temperatures stay warm. The units work alongside air conditioning systems to create better overall air quality. In humid regions, dehumidification often matters as much as cooling itself.
Rental options let you deploy dehumidification capacity exactly when and where conditions demand it.
Air Movement and Circulation Systems
Proper airflow distribution maximizes your air conditioning system’s effectiveness. Even the best HVAC units underperform when air doesn’t circulate throughout your warehouse space.
HVLS (High Volume, Low Speed) Fans
HVLS fans move massive volumes of air efficiently throughout large warehouse spaces. These ceiling-mounted fans feature blades spanning 8 to 24 feet in diameter. They turn at low speed to push air downward and outward across your facility.
The cooling effect comes from air movement across the skin. It doesn’t come from lowering the actual temperature, and workers feel 8-10°F cooler.
This happens due to increased evaporative cooling from their natural perspiration. This perceived cooling improves comfort and productivity without the energy costs of air conditioning alone.
HVLS fans break up heat stratification. Hot air trapped near your ceiling gets pushed down. It mixes with cooler air at floor level. Temperature becomes more uniform throughout your vertical space. Any air conditioning system you run works better when HVLS fans distribute the conditioned air.
These fans amplify your HVAC investment. A central air conditioning system, which cools air at ceiling level, ensures that cool air is distributed to the worker level immediately.
Energy efficiency is a major benefit. A single HVLS fan consumes about as much electricity as a standard household appliance. It moves air across 20,000 square feet or more. Compare that to running multiple smaller fans or trying to cool the same area with air conditioning alone.
Industrial Ceiling Fans and Floor Fans
Industrial ceiling fans and floor fans provide cost-effective air circulation. Use them where HVLS installation isn’t feasible, or the budget allows only basic solutions. Smaller ceiling fans positioned strategically improve airflow in specific zones. Floor-mounted industrial fans direct air movement exactly where needed.
These fans prevent stagnant air pockets. Dead zones where hot air accumulates become better ventilated. Workers stationed in specific areas get direct airflow. Equipment stays cooler when air circulates it rather than letting heat build up.
Use these fans to supplement your air conditioning systems. Cool air distributes more effectively when fans push it throughout your warehouse space. Spot coolers deliver better coverage when fans move the cooled air to surrounding areas.
Natural Ventilation Strategies
Natural ventilation uses physics and smart design to move air. It requires no mechanical systems. Cross-ventilation occurs when you position intake and exhaust points to create airflow paths through your building.
Exhaust fans near the roof remove hot air that rises naturally. Intake vents at ground level or through open loading docks draw in cooler air. When outdoor temperatures drop below indoor levels, aggressive ventilation flushes accumulated heat from your facility. This typically happens during evening and morning hours.
Roof vents and ridge ventilation systems provide passive hot-air escape routes, and heat rises continuously. Giving it an exit path reduces the overall thermal load in your warehouse. These systems work 24/7 without energy consumption.
Keep Your Warehouse Running Efficiently with HOLT Industrial Rentals
Your warehouse cooling challenges don’t wait. Heat stress threatens your workers today, while equipment overheats. Temperature-sensitive inventory sits at risk this minute.
HOLT Industrial Rentals delivers industrial-grade portable air conditioners, spot coolers, and comprehensive HVAC solutions to your facility.
Our rental fleet includes high-efficiency portable air conditioning units. They’re sized from small spot coolers to industrial systems handling thousands of square feet. We handle delivery, installation, and ongoing support. You focus on operations while we ensure your cooling equipment performs reliably.
Every facility presents unique cooling challenges. Our team assesses your warehouse space, identifies heat sources, and identifies problem zones. Then we recommend air conditioning solutions that balance effectiveness with budget.
Emergencies demand immediate response. HVAC system failures can’t wait for quotes and approval processes. Call us, and we’ll have portable air conditioners delivering cool air to your facility within hours. Our 24/7 availability means you get cooling capacity when you need it most.
Call 844-660-RENT (7368) or schedule a site assessment to find the right cooling equipment for your warehouse. We serve facilities across the United States with the industrial-grade air conditioning systems and portable cooling solutions your operation demands.
Warehouse Cooling Systems That Improve Productivity and Safety
Your warehouse temperature affects everything. Worker performance drops, equipment overheats, and inventory damage climbs. Heat stress sends employees home or worse, to the hospital.
You manage a large space with high ceilings, and loading dock traffic runs constantly. Heat-generating equipment operates all day. Traditional air conditioning costs too much. It still leaves hot spots throughout your facility.
The right cooling approach balances worker safety, equipment protection, and operational costs.
In this guide, you’ll learn why warehouse cooling directly impacts your bottom line and see common obstacles facing large facilities. You’ll explore the most effective cooling systems for different scenarios.
Why Warehouse Cooling Is Critical for Safety and Productivity
Heat exhaustion becomes a real risk when temperatures inside your facility climb above 80-85°F. Your workers slow down. They face serious health hazards during the summer months or in facilities with poor ventilation.
OSHA guidelines recognize heat stress as a preventable workplace hazard.
Workers in hot environments experience decreased cognitive function. They have reduced physical stamina, and injury rates go up. Turnover spikes when employees consistently work in uncomfortable conditions. Replacing trained warehouse staff costs thousands per position.
The Hidden Costs of Excessive Heat
Your productivity takes an immediate hit when temperatures rise. Workers need more frequent breaks, and tasks take longer. Accuracy suffers during picking, packing, and inventory management.
Equipment suffers too. Forklifts and conveyor systems generate their own heat. Then they operate in already-hot conditions.
Electronics and machinery malfunction more frequently, requiring more frequent maintenance. Heat-sensitive inventory can become damaged or unsellable. This includes pharmaceuticals, food products, and certain building materials.
Poor air quality compounds these problems. Stagnant hot air traps dust, exhaust fumes, and other airborne particles. Workers breathe harder in the heat, inhaling more contaminants.
The financial impact extends beyond obvious productivity losses. Equipment downtime means delayed shipments. Product damage means waste and customer complaints. Employee turnover means constant recruiting and training costs. Energy bills climb as you run inefficient cooling systems harder and longer.
Common Challenges When Cooling Large Warehouses
Most warehouses prioritize storage capacity and operational flow over climate control, creating significant cooling obstacles.
Structural Barriers Work Against You
High ceilings create natural heat stratification. Hot air rises and stays trapped near the roof while your workers suffer in the heat below. A 30-foot ceiling means you’re cooling a massive volume of air, most of it well above where anyone works.
Large square footage compounds the problem. A 50,000-square-foot facility requires industrial-scale cooling capacity. Traditional air conditioning systems designed for office buildings can’t efficiently handle the load. You’ll face enormous energy costs trying to cool that much warehouse space with undersized equipment.
Older buildings often have minimal or no insulation. Metal roofs absorb heat all day and radiate it into your warehouse. Concrete walls transfer outdoor temperatures inside.
Operational Factors Complicate Temperature Control
Loading docks create constant air exchange with the outdoors. Every time a door opens, hot air rushes in. Truck traffic means doors stay open for extended periods during summer heat. You can’t shut down operations to maintain temperatures.
Heat-generating equipment runs throughout your facility. Forklifts produce engine heat, and conveyor motors warm up during operation. Older lighting systems add a significant thermal load. Production equipment in manufacturing warehouses generates even more heat.
Airflow becomes inconsistent across different zones. Some areas have good natural ventilation, while others become dead zones. Pallets stacked to the ceiling block air movement. Rack configurations create barriers to air circulation.
Balancing these priorities without a clear strategy leads to inadequate warehouse cooling solutions.
The Best Warehouse Cooling Systems for Large Facilities
Your cooling strategy depends on your facility size and budget. You also need to decide between permanent infrastructure or flexible temporary support. Here are the most effective warehouse cooling solutions available today.
Air Conditioning Systems for Warehousing Cooling
Air conditioning units deliver precise temperature control and humidity management. They’re the gold standard for warehouse cooling when conditions demand reliable performance.
Central HVAC Systems
Central HVAC systems provide comprehensive climate control for warehouses. They manage precise temperatures across large spaces.
These refrigerant-based air conditioning systems cool your entire facility to specific temperatures. This is essential when storing temperature-sensitive inventory or operating in extreme climates.
Modern HVAC installations offer high efficiency ratings. They reduce energy costs compared to older units. Variable-speed compressors adjust cooling output to match current demand. Zoned systems let you cool specific areas more intensively while maintaining baseline temperatures elsewhere.
The investment runs high. Installation costs for warehouse-scale HVAC systems reach into six figures. This depends on your square footage and ceiling height.
Ongoing maintenance, filter replacement, and refrigerant servicing add operational expenses. But for facilities requiring year-round climate control, central air conditioning delivers consistent results. It protects both workers and inventory.
Energy-efficient models reduce operating costs significantly. Look for systems with high SEER ratings. These high-efficiency units consume less power while delivering the same cooling capacity. The upfront cost premium typically pays back within 3-5 years through lower energy bills.
Portable Air Conditioners and Spot Coolers
Portable air conditioners and spot coolers solve your most immediate cooling challenges. These units provide concentrated cooling where your workers need it most, packing stations, quality control areas, equipment operator positions, or loading dock zones.
Spot-cooling targets problem areas without the expense of cooling your entire warehouse. Position units near heat-generating machinery to protect equipment performance. Direct cool air to worker stations during peak heat hours. Move them as your operational needs change throughout the day or season.
These refrigerant-based systems deliver cold air directly to hot spots. A 5-ton portable air conditioner can effectively cool 1,500-2,000 square feet. Multiple units strategically positioned throughout your facility provide comprehensive coverage at a lower cost than whole-building HVAC systems.
Installation takes minutes. Roll the unit into position, plug it in, and direct the airflow where you need it. When you face an unexpected heat wave or an HVAC system failure, portable cooling equipment can be deployed the same day.
Rental options deliver maximum flexibility. Scale your cooling capacity up during summer months or special projects without permanent investment. Return units when temperatures moderate. Avoid storage, maintenance, and year-round costs for equipment you only need part-time.
Modern portable air conditioners are more energy-efficient than older models. Variable-speed fans and improved refrigerants reduce power consumption. Some units include heat pump technology that can provide heating during cooler months, extending usefulness beyond summer cooling.
Supplemental Cooling Methods
Air conditioning units work best when combined with complementary cooling strategies. These methods enhance the effectiveness of your primary cooling system. They reduce overall energy costs.
Evaporative Cooling Solutions
Evaporative coolers use water evaporation to cool air. They’re also called swamp coolers. This process consumes 75% less energy than traditional air conditioning units. These systems work exceptionally well in dry climates where humidity stays low.
The science is simple. Water evaporates and absorbs heat from the surrounding air. Fans push this cooled air throughout your warehouse. You’ll see temperature drops of 15-30°F. This depends on outdoor humidity levels. Operating costs stay low because the system relies on water and fan power. It doesn’t use energy-intensive refrigerant compression.
Climate matters significantly. Evaporative coolers lose effectiveness in humid regions. The air already carries substantial moisture. Once outdoor humidity exceeds 50-60%, cooling performance drops dramatically.
In dry climates, evaporative cooling effectively handles warehouse temperature control. You can achieve substantial cooling at a fraction of the cost of air conditioning systems. Many facilities use evaporative coolers for general warehouse cooling. Then they deploy portable air conditioners in specific zones. requiring lower temperatures or humidity control.
Portable dehumidifiers address the humidity component of uncomfortable warehouse conditions. High humidity makes heat feel worse. Your workers sweat, but the moisture doesn’t evaporate efficiently. Additionally, condensation forms on equipment and inventory.
Dehumidifiers remove moisture from the air,r improving comfort even when temperatures stay warm. The units work alongside air conditioning systems to create better overall air quality. In humid regions, dehumidification often matters as much as cooling itself.
Rental options let you deploy dehumidification capacity exactly when and where conditions demand it.
Air Movement and Circulation Systems
Proper airflow distribution maximizes your air conditioning system’s effectiveness. Even the best HVAC units underperform when air doesn’t circulate throughout your warehouse space.
HVLS (High Volume, Low Speed) Fans
HVLS fans move massive volumes of air efficiently throughout large warehouse spaces. These ceiling-mounted fans feature blades spanning 8 to 24 feet in diameter. They turn at low speed to push air downward and outward across your facility.
The cooling effect comes from air movement across the skin. It doesn’t come from lowering the actual temperature, and workers feel 8-10°F cooler.
This happens due to increased evaporative cooling from their natural perspiration. This perceived cooling improves comfort and productivity without the energy costs of air conditioning alone.
HVLS fans break up heat stratification. Hot air trapped near your ceiling gets pushed down. It mixes with cooler air at floor level. Temperature becomes more uniform throughout your vertical space. Any air conditioning system you run works better when HVLS fans distribute the conditioned air.
These fans amplify your HVAC investment. A central air conditioning system, which cools air at ceiling level, ensures that cool air is distributed to the worker level immediately.
Energy efficiency is a major benefit. A single HVLS fan consumes about as much electricity as a standard household appliance. It moves air across 20,000 square feet or more. Compare that to running multiple smaller fans or trying to cool the same area with air conditioning alone.
Industrial Ceiling Fans and Floor Fans
Industrial ceiling fans and floor fans provide cost-effective air circulation. Use them where HVLS installation isn’t feasible, or the budget allows only basic solutions. Smaller ceiling fans positioned strategically improve airflow in specific zones. Floor-mounted industrial fans direct air movement exactly where needed.
These fans prevent stagnant air pockets. Dead zones where hot air accumulates become better ventilated. Workers stationed in specific areas get direct airflow. Equipment stays cooler when air circulates it rather than letting heat build up.
Use these fans to supplement your air conditioning systems. Cool air distributes more effectively when fans push it throughout your warehouse space. Spot coolers deliver better coverage when fans move the cooled air to surrounding areas.
Natural Ventilation Strategies
Natural ventilation uses physics and smart design to move air. It requires no mechanical systems. Cross-ventilation occurs when you position intake and exhaust points to create airflow paths through your building.
Exhaust fans near the roof remove hot air that rises naturally. Intake vents at ground level or through open loading docks draw in cooler air. When outdoor temperatures drop below indoor levels, aggressive ventilation flushes accumulated heat from your facility. This typically happens during evening and morning hours.
Roof vents and ridge ventilation systems provide passive hot-air escape routes, and heat rises continuously. Giving it an exit path reduces the overall thermal load in your warehouse. These systems work 24/7 without energy consumption.
Keep Your Warehouse Running Efficiently with HOLT Industrial Rentals
Your warehouse cooling challenges don’t wait. Heat stress threatens your workers today, while equipment overheats. Temperature-sensitive inventory sits at risk this minute.
HOLT Industrial Rentals delivers industrial-grade portable air conditioners, spot coolers, and comprehensive HVAC solutions to your facility.
Our rental fleet includes high-efficiency portable air conditioning units. They’re sized from small spot coolers to industrial systems handling thousands of square feet. We handle delivery, installation, and ongoing support. You focus on operations while we ensure your cooling equipment performs reliably.
Every facility presents unique cooling challenges. Our team assesses your warehouse space, identifies heat sources, and identifies problem zones. Then we recommend air conditioning solutions that balance effectiveness with budget.
Emergencies demand immediate response. HVAC system failures can’t wait for quotes and approval processes. Call us, and we’ll have portable air conditioners delivering cool air to your facility within hours. Our 24/7 availability means you get cooling capacity when you need it most.
Call 844-660-RENT (7368) or schedule a site assessment to find the right cooling equipment for your warehouse. We serve facilities across the United States with the industrial-grade air conditioning systems and portable cooling solutions your operation demands.

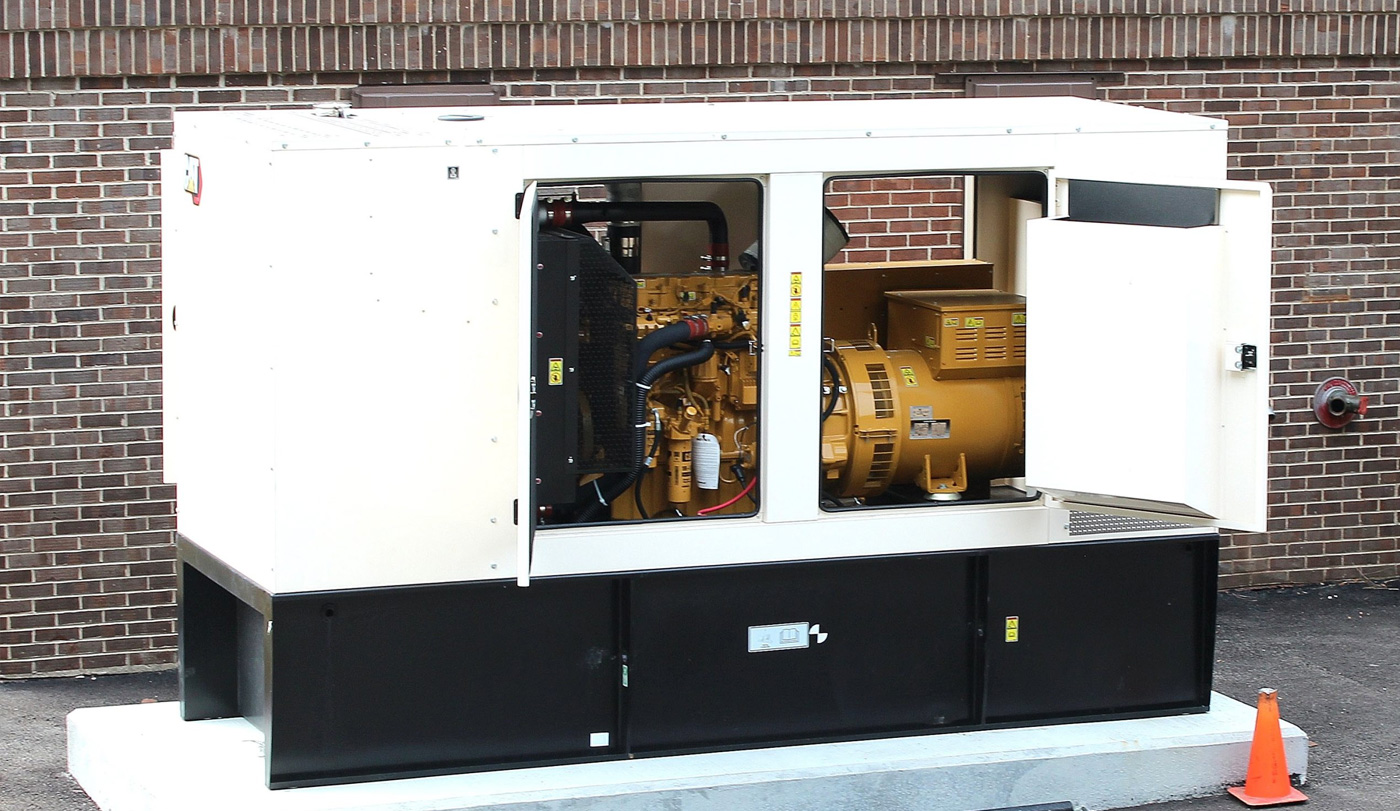

How to Accurately Calculate Voltage Drop for Power Equipment
You can have the right generator and equipment, yet still end up with a job site that won’t power up. The culprit is often a voltage drop problem nobody caught during planning.
Too much resistance over a long wire run quietly robs your equipment of the voltage it needs to operate safely and efficiently. It’s one of those details that feels merely technical until you’ve seen what happens when it’s ignored.
In this guide, you’ll learn how to calculate voltage drop using proven formulas. Discover which factors have the biggest impact on your results. Also, learn how to apply a voltage calculator approach that holds up in the field.
What Is Voltage Drop and Why Does It Matter for Power Equipment
Voltage drop is silent. It doesn’t trip a breaker or throw an error code. It quietly robs your equipment of the power it needs to run properly.
Understanding it is the first step before you reach for any voltage drop calculator or start running numbers on wire size.
What Voltage Drop Is
Electrical current flows from a power source through a conductor to a load. Along the way, resistance in the wire fights as it flows. The result is a lower voltage at the end of the run than the one that left the source.
Think of it like water moving through a long hose. The pressure at the nozzle is never as strong as it is at the spigot. The longer the hose, the weaker the flow. Wire works the same way.
That gap between supply voltage and delivered voltage, that’s your V drop.
Why It Matters on the Job Site
Low voltage is hard on equipment. Motors work harder to compensate. They draw more amperes, run hotter, and wear out faster. Generators underperform, and sensitive controls misfire or shut down entirely.
On industrial sites, that means downtime, damaged equipment, or jobs that stall because a power problem went unnoticed until something failed.
Temperature-sensitive equipment takes the hit hard. Climate control units and other temperature control equipment require a stable voltage to maintain setpoints accurately. A weak electrical circuit reduces efficiency and compromises the whole system.
The Industry Threshold You Need to Know
The National Electrical Code (NEC) sets the standard. It recommends a maximum 3% voltage drop on any single branch circuit. The allowable voltage drop across the entire system, including the feeder and branches, should remain at or below 5%.
These are the voltage drop limits that protect equipment, ensure safety, and keep installations code-compliant.
Exceed them, and you’re risking performance and liability.
Key Factors That Affect Voltage Drop
Voltage drop doesn’t happen randomly. Six specific variables determine how much voltage your equipment loses before it ever reaches the load.
Wire Size (Gauge)
Wire size is one of the biggest factors in any electrical circuit. A small wire means higher resistance. Higher resistance means more V drop. Wire gauge is measured in AWG; the higher the number, the thinner the wire. Thin wire fights current every foot of the run.
For heavy industrial loads, conductors are sized in kcmil (thousand circular mils), where a larger circular mils value means lower resistance and less drop. Always match conductor size to the job, not just the minimum NEC requirement.
Wire Run Length
Distance kills voltage. The longer the current flows through a conductor, the more resistance it fights. A common job-site mistake is measuring only one direction. The electrical circuit runs out and back, so a 200-foot run is actually 400 feet of conductor. That error alone can push a system past allowable voltage drop limits before a single piece of equipment powers on. Always calculate total cable length, not just the distance to the load.
Current Load (Amperage)
More amps means more drop. As load current increases, so does the voltage lost across the conductor. Running equipment near its rated ampacity leaves almost no margin. A motor pulling close to its rated amperes on a long run will see a meaningful voltage drop, enough to affect performance. Use a voltage drop calculator to verify your numbers before committing to a cable size.
<h3> Conductor Material (Copper vs. Aluminium)
Conductor material directly affects resistance. Copper has lower impedance and carries more current through a smaller cross-sectional area. Aluminium is lighter and cheaper, making it common in large feeder runs and temporary power setups. But aluminium has higher resistivity, so the same wire gauge formula that works for copper won’t work for aluminium. Each material has its own constant in the voltage drop formulas. Use the wrong one, and your calculation is wrong from the start.
Temperature
Heat raises resistance. As the conductor temperature rises, electrons encounter greater resistance as they move through the wire. Outdoor summer job sites are a real concern, as are runs near generators or engine exhaust. The National Electrical Code (NEC) provides temperature correction factors for a reason. Ignoring them on a hot-weather job can push percentage voltage drop beyond acceptable limits even on a correctly sized wire. Factor in ambient temperature before finalizing your cable size.
Single-Phase vs. Three-Phase Systems
System type changes everything about how you calculate voltage drop. In single-phase circuits, current travels out and back on two conductors; resistance adds up fast on long runs.
Three-phase circuits distribute the load across three conductors. That balance reduces the effective resistance the circuit sees. The result is less drop for the same supply voltage, amps, and cable length.
For large industrial equipment and longer runs, three-phase is almost always the more efficient choice. The load’s power factor also plays a role, especially in three-phase systems, where reactance must be accounted for.
Voltage Drop Formulas You Need to Know
The right formula depends on your system type. Know which one applies to your electrical circuit before you run the numbers.
Single-Phase Voltage Drop Formula
VD = (2 x K x I x L) / CM
Each variable does a specific job. Here’s what they mean:
- VD – Voltage drop, in volts
- K – Resistivity constant of the conductor material. Use 12.9 for copper, 21.2 for aluminium.
- I – Load current, in amperes (amps)
- L – One-way cable length, in feet
- CM – Conductor size, in circular mils (the cross-sectional area of the wire)
The “2” accounts for the full circuit; current flows out and returns. Single-phase circuits carry both legs in the same run.
Worked Example
You have a 240V single-phase generator on a job site. It powers equipment 175 feet away. The load draws 45 amps. You’re running #4 AWG copper wire (41,740 CM).
Plug in your numbers:
VD = (2 x 12.9 x 45 x 175) / 41,740
VD = 203,715 / 41,740 = 4.88 volts
Now check your percentage voltage drop:
% VD = (4.88 / 240) x 100 = 2.03%
That clears the NEC 3% threshold for branch circuits. Your wire size works for this run.
If the number came back above 3%, you’d upsize to the next AWG, then recalculate.
Three-Phase Voltage Drop Formula
VD = (1.732 x K x I x L) / CM
The structure mirrors the single-phase formula. One number changes: 1.732 replaces the “2.”
That number is the square root of 3 (√3). Three-phase circuits distribute load across three conductors. The geometry of that distribution reduces the effective resistance of the run. The result is a lower voltage drop compared to single-phase at the same distance and load.
Here’s what each variable means:
- VD – Voltage drop, in volts
- 1.732 – Square root of 3, the phase multiplier for three-phase circuits
- K – Resistivity constant. 12.9 for copper, 21.2 for aluminium
- I – Load current, in amperes
- L – One-way cable length, in feet
- CM – Conductor size, in circular mils
Worked Example
Same job site. Same 175-foot run. Same 45-amp load. This time you’re running a 480V three-phase circuit with #4 AWG copper wire (41,740 CM).
VD = (1.732 x 12.9 x 45 x 175) / 41,740
VD = 176,243 / 41,740 = 4.22 volts
Percentage voltage drop:
% VD = (4.22 / 480) x 100 = 0.88%
Well inside the NEC allowable voltage drop limit 3%. Three-phase circuits handle longer runs more efficiently. That matters when you’re sizing cable for large industrial equipment spread across a job site.
A note on power factor and impedance: These formulas use resistance only. For most job-site calculations, that’s sufficient. For precision work, long cable runs, high-reactance conductors, or large kcmil cables, factor in impedance and power factor for tighter results.
Not sure which system fits your job site? HOLT’s team can help you spec the right generator or power distribution equipment for your run distances and load requirements.
Get Your Job Site the Power You Need with Holt Industrial Rentals
Accurate power starts before the first cable hits the ground. Know your load, run distance, and size your conductors right, and the rest follows.
HOLT Industrial Rentals supplies temporary generators, power distribution equipment, and temperature-control units designed for demanding job sites. Our team helps you match the right equipment to your actual electrical requirements and the closest available unit.
Don’t leave power delivery to chance. Call HOLT at 844.660.RENT (7368) or schedule a site assessment to get your next project wired correctly from the start.
Load Bank Testing Procedures for Reliable Generator Operation
Your backup generator looks fine sitting there. But looks don’t tell you much. The real question is: will it hold up when the power goes out, and your facility depends on it?
Most standby generators spend their lives running light loads or sitting idle. That sounds harmless, yet it isn’t. Without regular load bank testing, diesel engines build up deposits, alternators drift, and voltage regulators go unchecked. By the time you find out there’s a problem, you’re already in one.
In this guide, you’ll learn what load bank testing is, how it works, and how often you should do it. Discover the exact procedure to follow to keep your emergency power systems running reliably.
So, What Is Load Bank Testing?
Load bank testing puts an artificial load on your generator. It simulates real-world electrical demand to verify that your generator can handle full load conditions when actual power failure hits.
A load bank is a self-contained piece of equipment. It connects your generator and draws a controlled electrical load, just like your facility would during a real outage. The difference is that you control the test, pick the timing, and the conditions.
Why Idle Runtime Isn’t Enough
Your generator starts up during monthly tests. It runs for 20 minutes at light loads. That’s not the same as being ready.
Diesel engines need to work. Running a diesel generator at low loads for short periods causes wet stacking. This is a buildup of unburned fuel and carbon deposits in the exhaust system. Over time, this buildup reduces power output, increases the risk of overheating, and can create a fire hazard.
Running a load bank test tells you things idle testing never can. It confirms your generator can sustain its rated capacity. It puts real stress on the cooling system, coolant levels, and fuel pressure. It checks voltage regulator performance and frequency stability under actual electrical load.
How Does a Load Bank Work?
A load bank applies a controlled electrical load to your generator. It does this by converting electrical energy into heat through resistive elements. That heat gets discharged safely, usually through a built-in cooling system with fans.
Types of Load Banks
Not every load bank works the same way. The type you use depends on your generator and the test you’re running.
- Resistive load banks are the most common. They apply a pure resistive load, such as electric heaters or lighting systems. They test your generator at unity power factor and are used for most standard generator load bank testing.
- Reactive load banks go further. They include inductive and capacitive elements that simulate real-world loads like motors, transformers, and air conditioning systems. Inductive load banks test your generator under lagging power factor conditions. Capacitive load banks test under leading power factor conditions.
- Resistive/reactive combination units apply both simultaneously. These give you the most complete picture of how your generator sets will perform under actual facility conditions.
How Often Should Generator Load Bank Testing Be Performed?
Testing frequency depends on how your generator is used and what industry you operate in. Some facilities test once a year. Others are required to test more often. Here’s how to think about it.
The Baseline Standard
For most standby generators, annual load bank testing is the minimum. Once a year, you put the generator under full load conditions and confirm it performs to its nameplate rating.
If your generator supports critical operations, once a year may not be enough.
NFPA 110 Requirements
The National Fire Protection Association sets the standard for emergency power systems in the United States. Under NFPA 110, emergency power generators must be tested at 30% or more of their rated capacity for a minimum of 30 minutes every month.
If a generator fails to reach 30% of its rated load during monthly testing, NFPA 110 requires a load bank test to be performed. That test must run for a minimum of two hours at full load.
Testing by Industry and Use Case
Different operations carry different risks. Testing schedules should reflect that.
- Healthcare facilities run the strictest schedules. Hospitals and care centers depend on emergency power generators to keep patients alive. NFPA 110 compliance is mandatory. Many healthcare facilities run load bank tests every six months as a standard practice to meet code and manage risk.
- Data centers run on uptime. A power outage that takes down a server costs real money fast. Most data centers run annual load bank testing at minimum, with some running tests every six months. Their backup power systems are too important to leave to chance.
- Industrial and manufacturing facilities depend on prime power and backup generators to keep production running. Testing schedules here vary, but annual testing is standard. Facilities with older generator sets or high-demand operations often test more frequently.
- Construction and temporary power applications follow a different rhythm. Generators on job sites move around and take heavy use. Regular load bank testing keeps them reliable across projects.
Insurance and Risk Management
Your insurance provider cares about this too. Many commercial property and business interruption policies require documented generator testing as a condition of coverage. Skipping load bank testing or failing to keep records can affect your claim if a power failure causes losses.
Documented test records show your insurer, regulator, and team that your backup power systems are maintained and ready. That’s peace of mind with paperwork to back it up.
Generator Load Bank Testing Procedure
Knowing what load bank testing is and when to do it only gets you so far. The procedure itself matters just as much. Follow these steps to run a safe and practical test.
Step 1: Pre-Test Checks
Before you connect anything, inspect the generator. A load bank test puts your system under stress. You want to catch existing problems before the test.
Check the following:
- Coolant levels — top up if low
- Fuel pressure and fuel supply — confirm adequate fuel for the full test duration
- Exhaust system — look for leaks, blockages, or damage
- Oil levels — check and correct before starting
- Transfer switches — confirm they are functioning correctly
- Electrical connections — inspect for loose or damaged wiring
- Nameplate rating — confirm the generator’s rated capacity before sizing your load bank
Document everything you find. Any existing faults should be resolved before the test begins.
Step 2: Confirm Load Bank Compatibility
Match your load bank to your generator. The load bank must be rated to handle the full electrical load of the generator set you’re testing.
Check voltage compatibility between the load bank and the generator’s power output. Confirm the load bank type suits your testing goals.
If the ratings don’t match, stop. Using the wrong load bank can damage your generator or produce inaccurate results.
Step 3: Connect the Load Bank
Connect the load bank to the generator’s power supply terminals. Follow the manufacturer’s connection instructions exactly.
Keep all connections tight and secure. Loose connections under full load create heat, arcing, and potential fire hazards. Double-check everything before you start the generator.
Step 4: Start the Generator and Stabilize
Start the generator and let it run unloaded for a few minutes. This gives the diesel engine time to warm up and reach normal operating temperature.
Watch the gauges. Confirm that the voltage output, frequency stability, and coolant temperature are all within the normal range before you add any load. If anything looks off, shut down and investigate.
Step 5: Apply Load Incrementally
Begin applying the load in steps. Start at 25% of rated capacity. Hold that level for a set period, typically 10 to 15 minutes, before moving to the next increment.
Progress through 50%, 75%, and then 100% of rated capacity. At each step, record your readings. Give the generator time to stabilize at each load level before increasing further.
Step 6: Monitor Performance
Active monitoring is the core of the test. Don’t just apply the load and walk away.
Track these metrics at each load increment:
- Voltage output — stable across all load levels?
- Frequency stability — holding at rated frequency?
- Operating temperature — staying within a safe range?
- Coolant temperature — is the cooling system keeping up?
- Fuel pressure — consistent throughout the test?
- Power factor — within acceptable range?
- Exhaust condition — watch for excessive smoke or unusual emissions
Step 7: Shut Down and Cool Down
Once the test is complete, reduce the load in reverse steps. Drop from 100% back to 75%, then 50%, then 25%, then zero. Never remove the whole load all at once; sudden unloading can damage the alternator and voltage regulator.
After the load is removed, let the generator run unloaded for a cool-down period.
Step 8: Post-Test Inspection
The test doesn’t end at shutdown. A post-test inspection confirms that the generator passed the test in good condition.
Check the following after shutdown:
- Exhaust system — look for new leaks or damage
- Coolant and oil levels — top up if needed
- Electrical connections — check for heat damage or loosening
- Overall condition — note anything that changed during the test
Document your findings alongside your performance data. A complete test record includes pre-test conditions, all performance readings, and post-test inspection results.
Having Issues with Your Generator? Call Holt Industrial Rentals for Help Today
Your backup power system is only as reliable as the last time you tested it.
Load bank testing is how you know your generator will hold up during a real power outage.
HOLT Industrial Rentals carries load bank rental equipment and industrial generator rentals to support your testing and backup power needs, delivered on-site and backed by an experienced team.
Don’t wait for a power failure to find out your system isn’t ready.
Call 844-660-RENT (7368) or schedule a site assessment today.
